LP-0,7

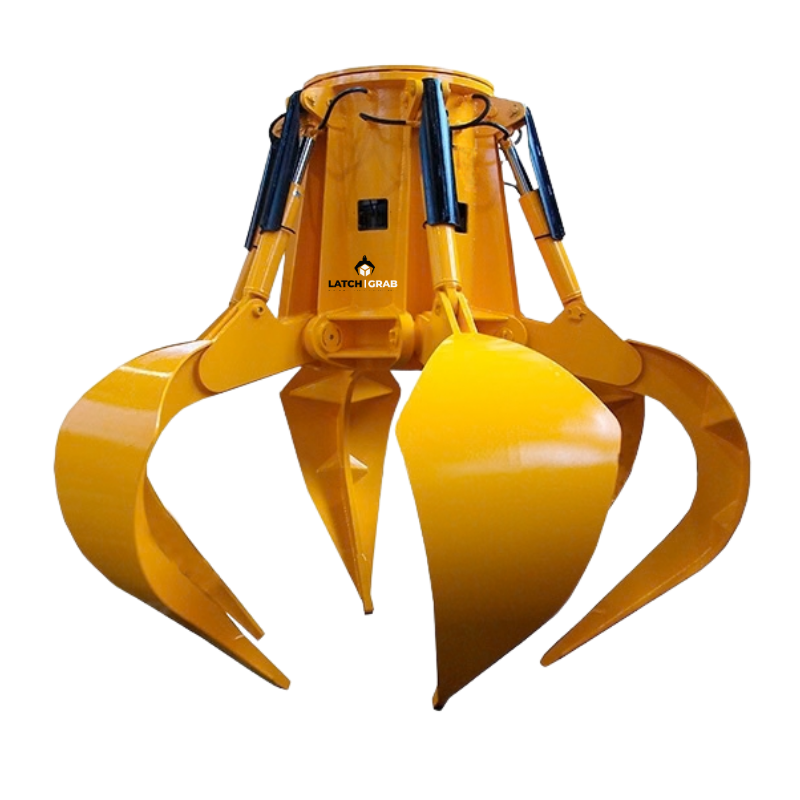

This Orange Peel Motor Grabs are suitable for efficient handling of Rubbish, Urban Solid Waste (USW), Municipal Solid Waste (MSW), turnings domestic and light industrial, Refuse Derived Fuel (RDF), cut tires
- Hydraulic unit equipped with a self-regulating variable-displacement piston pump for efficient and controlled operation.
- Specially profiled jaws designed for the application to deliver maximum penetration force and effective load handling.
- Fully protected hydraulic cylinders for enhanced durability and protection during demanding operations.
- Special penetration teeth manufactured from wear-resistant manganese steel for extended service life.
- Structure validated through Finite Element Analysis (FEA) to ensure strength, durability, and structural reliability.
Max. material density
0,7 T/M3
Structure
Circular
References
| Reference | Capacity | Jaw quantity | Engine 40% ED | Intensity 400 V | Working pressure | Closing time | Opening time | Crane SWL | Weight | Dimensions mm | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m3 | kW | A | bar | s | s | t | kg | A | B | C | D | ||
| LP5-500-0,7 | 0,5 | 5 | 7,3 | 14,5 | 75 | 10 | 6 | 1,6 | 825 | 1615 | 1465 | 1290 | 1780 |
| LP5-750-0,7 | 0,75 | 5 | 7,3 | 14,5 | 90 | 10 | 6 | 1,6 | 865 | 1700 | 1480 | 1445 | 1950 |
| LP5-1000-0,7 | 1 | 5 | 7,3 | 14,5 | 110 | 10 | 6 | 1,6 | 945 | 1875 | 1525 | 1480 | 2290 |
| LP5-1250-0,7 | 1,25 | 5 | 7,3 | 14,5 | 115 | 8 | 5 | 2,5 | 1490 | 2020 | 1770 | 1600 | 2505 |
| LP5-1500-0,7 | 1,5 | 5 | 7,3 | 14,5 | 140 | 8 | 5 | 3,2 | 1540 | 2080 | 1790 | 1700 | 2630 |
| LP5-2000-0,7 | 2 | 5 | 10 | 20 | 170 | 8 | 5 | 3,2 | 1685 | 2210 | 1835 | 1850 | 2890 |
| LP5-2500-0,7 | 2,5 | 5 | 10 | 20 | 200 | 8 | 5 | 4 | 1840 | 2300 | 1865 | 2000 | 3075 |
| LP5-3000-0,7 | 3 | 5 | 10 | 20 | 230 | 10 | 6 | 4 | 2135 | 2420 | 1940 | 2160 | 3270 |
| LP6-4000-0,7 | 4 | 6 | 20,5 | 39 | 170 | 9 | 5 | 6,3 | 3100 | 2660 | 2200 | 2350 | 3465 |
| LP6-5000-0,7 | 5 | 6 | 20,5 | 39 | 210 | 10 | 6 | 8 | 3175 | 2860 | 2240 | 2470 | 3850 |
| LP6-6000-0,7 | 6 | 6 | 25,5 | 48,5 | 160 | 10,5 | 6 | 10 | 4280 | 3015 | 2490 | 2780 | 3915 |
| LP6-8000-0,7 | 8 | 6 | 31,5 | 61 | 200 | 10,5 | 6 | 10 | 4360 | 3215 | 2560 | 3070 | 4255 |
| LP7-10000-0,7 | 10 | 7 | 31,5 | 61 | 200 | 15 | 8 | 12,5 | 4900 | 3430 | 2600 | 3350 | 4700 |
| LP7-12000-0,7 | 12 | 7 | 51 | 94 | 200 | 13,5 | 7,5 | 16 | 6800 | 3675 | 3220 | 3485 | 4960 |
| LP7-15000-0,7 | 15 | 7 | 51 | 94 | 210 | 17 | 9 | 18 | 7500 | 3925 | 3345 | 3630 | 5415 |
