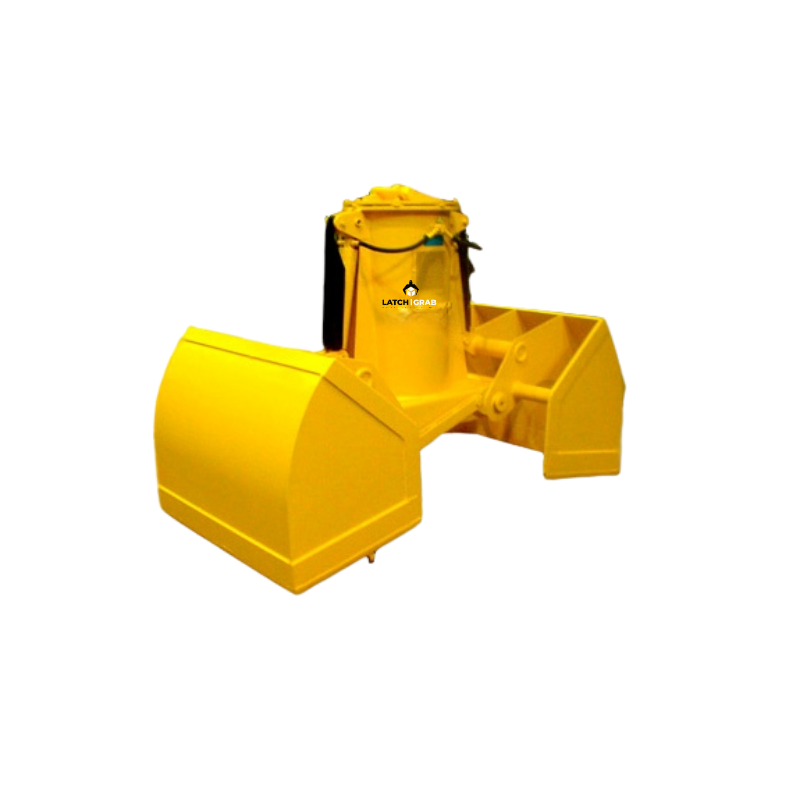

LHC2-1,8
Piled and bulk material up to 1,1 t/m³ density.
- Hydraulic unit equipped with a self-regulating variable-displacement piston pump for efficient and controlled operation.
- Specially profiled jaws with side closing plates, designed to apply maximum penetration force for efficient load handling.
- Fully protected hydraulic cylinders for enhanced durability and protection during demanding operations.
- Special penetration teeth manufactured from wear-resistant manganese steel for increased strength and extended service life.
- Structure validated through Finite Element Analysis (FEA) to ensure structural strength, stability, and reliability.
Max. material density
1.8 T/M3
Cylinder quantity
2
References
| Reference | Capacity | Engine 40% ED | Intensity 400 V | Working pressure | Closing time | Opening time | Crane SWL | Weight | Dimensions mm | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m3 | kW | A | bar | s | s | t | kg | A | B | C | D | E | |
| LHC2-1000-1,8 | 1 | 7,3 | 14,5 | 120 | 7 | 4 | 4 | 1430 | 2080 | 1820 | 1750 | 2230 | 1250 |
| LHC2-1250-1,8 | 1,25 | 10 | 20 | 160 | 7 | 4 | 4 | 1500 | 2170 | 1835 | 1850 | 2410 | 1300 |
| LHC2-1500-1,8 | 1,5 | 10 | 20 | 180 | 8 | 4 | 5 | 1560 | 2230 | 1845 | 1950 | 2525 | 1400 |
| LHC2-2000-1,8 | 2 | 10 | 20 | 160 | 11 | 6 | 6,3 | 2330 | 2430 | 2100 | 2150 | 2800 | 1600 |
| LHC2-2500-1,8 | 2,5 | 10 | 20 | 200 | 13 | 7 | 8 | 2450 | 2530 | 2120 | 2250 | 2995 | 1700 |
| LHC2-3000-1,8 | 3 | 20,5 | 39 | 150 | 11 | 5 | 10 | 3230 | 2930 | 2510 | 2450 | 3220 | 1800 |
| LHC2-3500-1,8 | 3,5 | 20,5 | 39 | 180 | 11 | 5 | 10 | 3360 | 2990 | 2520 | 2550 | 3335 | 1900 |
